Official Devices
obniz official devices come with licensed obnizOS pre-installed.
Connected electrical parts can be controlled throught obniz Cloud.
Official Devices List
obniz Cloud is available for free per month for products that come with "No Expiry cloud licensed devices"
See Pricing for available cloud features.
obniz Board
No Expiry Cloud License(Lite Plan)
- Wi-Fi Connection. BLE/UART/AD/Display/etc
- Motor Drivers(1A) for ALL 12 IO.
obniz Board 1Y
No Expiry Cloud License(Lite Plan)
- Wi-Fi Connection. BLE/UART/AD/Display/etc
- Sleep function enabled obniz Board
M5StickC
No Expiry Cloud License(Lite Plan)
- Wi-Fi Connection. BLE/UART/AD/Display/etc
- Battery/Color Display/Grove Port
ESP32-DevkitC
No Expiry Cloud License(Lite Plan)
- Wi-Fi Connection. BLE/UART/Button etc
- GPIO/UART/SPI/ADC/I2C
ESP32-GATEWAY
No Expiry Cloud License(Lite Plan)
- Wi-Fi/Ethernet Connection.
- SD Card Slottle/BLE/UART/AD/Display/etc
obniz PLC
No Expiry Cloud License(Lite Plan)
- Wi-Fi Connection
- Relay/Photo coupler/Grove etc

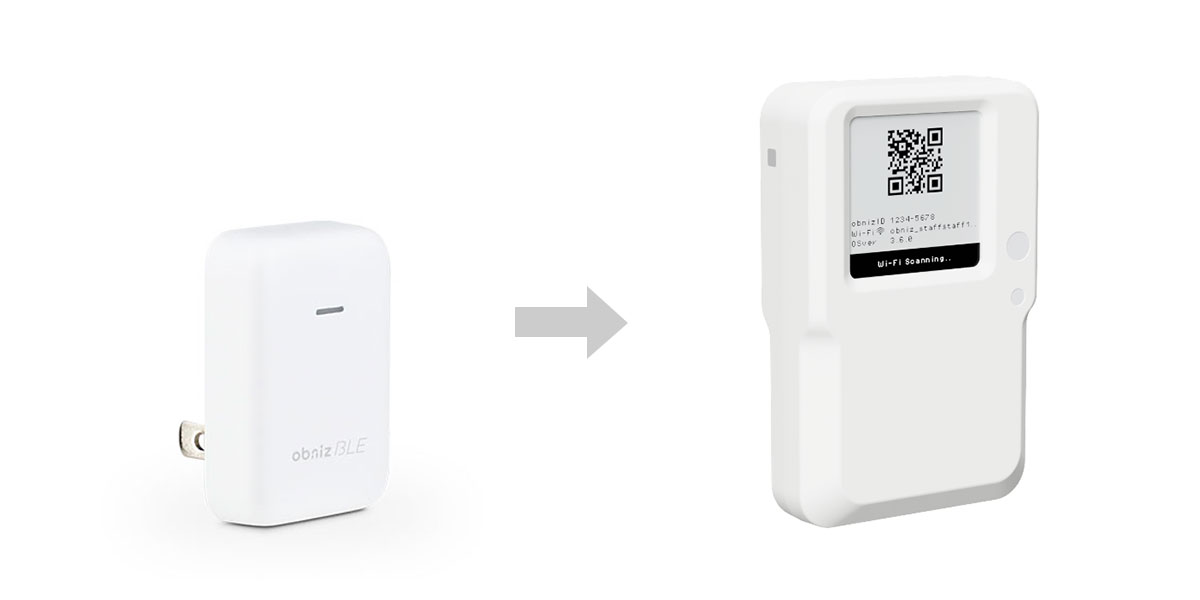

obniz BLE/Wi-Fi Gateway Gen2.0
No Expiry Cloud License(Lite Plan)
- Wi-Fi Connection/BLE5.0 LE
- Outlet Plug
obniz BLE/Wi-Fi Gateway
No Expiry Cloud License(Lite Plan)
- Wi-Fi Connection. BLE
- Outlet Plug

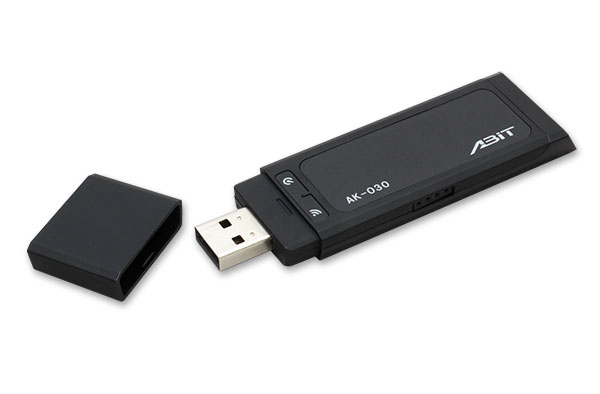

AK-030 LTE Cat.M1 USB Dongle
No Expiry Cloud License(Lite Plan)
- Built-in LTE-M module
- USB Type-A/BLE/LED/Button
The following products require a cloud usage fee.
obniz BLE Stick
Cloud usage fees: Monthly payment (Pricing)
- Wi-Fi Connection. BLE
- USB Type-A
obnizOS
obnizOS is software that runs on the device. It can be installed and used on devices equipped with ESP32 (configured according to ESP32-WROOM32).Enables device IO operation via API in cooperation with the obniz Cloud.
Official Kit Products
All parts are included.
obniz Location Kit
3 beacon tags and 3 obniz obniz BLE/Wi-Fi gateways are included in each package. You can check the BLE beacon detection capability of obniz.
Japanese version only
While supplies last
Buy nowobniz Sensing Kit
an obniz BLE/Wi-Fi gateway and 4 types of sensors. Let's Start develop for monitoring offices and stores remotely with battery powered sensors.
Japanese version only
End of Sale
obniz Starter Kit
Let's run with JavaScript!
It is a kit product that includes an obniz Board and eight types of electronic components.
Japanese version only
Made-to-order Product
AI Robot Kit and IoT Home Kit are available on a Made-to-order basis.
AI Robot Kit
Ai Robot Kit is for AI beginner. It let you to start Robot programming with your smartphone.
Japanese version only
IoT Home Kit
IoT Home Kit is for starting IoT. Easily make your home IoT with your smartphone.
Japanese version only
Introduction of other companies' products with obnizOS.
A programming kit that provides you with all the hardware,software, and parts that you need to start making your own robots.
Compare Devices (obniz Official Devices)
| Devices | obniz Board | obniz Board 1Y | M5StickC | M5Stack | ESP32-DevkitC | ESP32-Gateway | obniz BLE | obniz BLE Stick | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
 |
|
|
|
|
||
| Network | |||||||||
| - Wi-Fi (b/g/n 2.4G) | |||||||||
| - Wired LAN(Ethernet) | Need Ether PHY |
||||||||
| OS | obnizOS | obnizOS | obnizOS for M5StickC | obnizOS for M5Stack | obnizOS for ESP32 | obnizOS for ESP32 | obnizOS for encored | obnizOS for ESP32 | |
| Power supply | microUSB(5v) | USBType-C(5v) | USBType-C(5v) | USBType-C(5v) | microUSB(5v) | microUSB(5v) | AC100V 50/60Hz | USB Type-A | |
| IO voltage | 3.3v/5v | 3.3v/5v | 3.3v | 3.3v | 3.0~3.6V | 3.3v | - | - | |
| Number of IO | 12 | 12 | 4 | 20 | 21 | 21 | - | - | |
| Number of motor drivers(ch num) | 12 Over current/heating protection |
12 Over current/heating protection |
0 | 0 | 0 | 0 | 0 | 0 | |
| Size(mm) | 69.8×36.3 | 66.6×36.3 | 48×24 | 54×54 | 54.4×27.9 | 50×62 | 50×35 | 24×80 | |
| Display | Monochrome OLED(White dot) 128*64 |
Monochrome STN(Black dot) 128*64 |
Color TFT 80*160 |
Color TFT 320*240 |
- | - | - | - | |
| Built-in battery | - | - | (80mAh Li-Po) |
(150mAh) |
- | - | - | ||
| Sleep Function | - | Time/NMI Interrupt |
- | - | - | - | - | ||
| Peripheral Examples | GPIOx12, ADx12, PWMx6, UARTx2, SPIx2, I2Cx1, BLE(Central or Peirpheral)x1 | GPIOx12, ADx12, PWMx6, UARTx2, SPIx2, I2Cx1,BLE(Central or Peirpheral)x1 | GPIOx4, ADx4, PWMx4, UARTx2, SPIx2, I2Cx1, BLE(Central or Peirpheral)x1 | GPIOx20, ADx4, PWMx4, UARTx2, SPIx2, I2Cx1, BLE(Central or Peirpheral)x1 | GPIOx21, UARTx2, SPIx2, ADCx6, I2Cx2, BLE(Central or Peirpheral)x1 | GPIOx21, ADx6, PWMx6, UARTx2, SPIx2, I2Cx2, BLE(Central or Peirpheral)x1 | BLE(Central or Peirpheral)x1 | BLE(Central or Peirpheral)x1 | |
| Other accessories | - Power(J1 Pin) | - 5V・3.3V・GND Connector | - 6 axis IMU - Red LED - IR Transmittor - Grove Port |
- microSD - speaker - Grove Port |
- EN/Boot button - USB-to-UART Bridge |
- Micro SD | |||
| License | No Expiry Cloud License(Lite Plan) | No Expiry Cloud License(Lite Plan) | - | - | No Expiry Cloud License(Lite Plan) | No Expiry Cloud License(Lite Plan) | No Expiry Cloud License(Lite Plan) | (Cloud usage fee not included) | |
| Price | $57 (6,090JPY) | $64 (6,930JPY) | - | - | $50 (5,390JPY) | $51 (5,500JPY) | $91 (10,780JPY)〜 | 1000 units 4,400 JPY/unit~ 500 units 4,950 JPY/unit~ |
|
